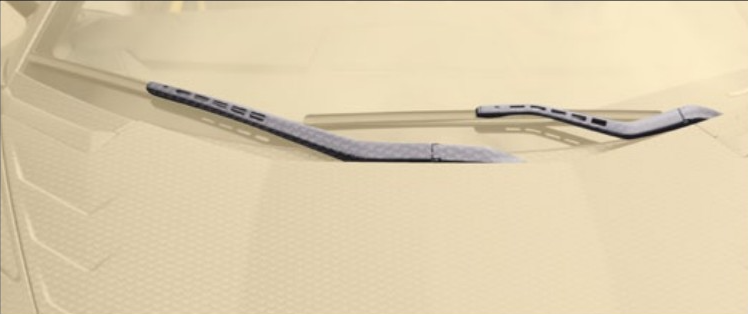

Carbon windshield wipers cover Mansory for Lamborghini Aventador

Carbon Windshield Wipers Cover Mansory for Lamborghini Aventador

At the base of the Lamborghini Aventador's windscreen, in the recessed channel between the lower screen edge and the front bonnet's trailing lip, sits the windshield wiper mechanism and its cover panel — a surface that spans the full width of the windscreen base and is clearly visible from outside the car at the front quarter. This panel is typically painted body colour or finished in satin black on the factory LP 700-4, creating a transition zone between the bonnet's carbon (where Mansory's front bonnet is fitted) and the windscreen glass. Mansory's carbon windshield wipers cover, part of the Mansory Carbon Fiber Body kit set for Lamborghini Aventador, replaces this painted panel with a precision-formed 3K twill carbon piece that resolves the material discontinuity at the bonnet-to-windscreen transition and elevates one of the most deliberately overlooked surfaces on the Aventador into a programme-consistent detail.

Construction & Materials

The wiper cover panel's geometry is deceptively simple — a near-flat transverse panel with modest curvature at the edges to follow the windscreen's lower rubber seal profile. This simplicity makes it particularly demanding for weave registration: on a nearly flat surface, any deviation from the 45 ° draping angle produces a visible diagonal distortion that is immediately apparent in the reflection of overhead light across the panel. Mansory's production specification requires a single-drop drape for the full panel width — no cloth joints permitted on the visible face — with weave angle verification at five points across the transverse span before cure.

• Weave: 3K twill, 45 ° — single-drop drape, no joints on visible face
• Inner construction: 2K plain biaxial for out-of-plane stiffness to resist wiper mechanism vibration transmission
• Cure: Autoclave — void-free consolidation across the full-width single-drop drape
• Wall thickness: 2.0 mm throughout
• Finish: high-gloss UV-clear lacquer, polished to match front bonnet surface reflectivity
• Mounting: OEM wiper mechanism cover clip system — wiper mechanism and motor remain in place; only the cover changes
• Weight: approximately 0.35 kg (vs factory painted composite ~0.65 kg)
• Wiper arm clearance: verified for standard LP 700-4 wiper arm geometry — no modification to the wiper mechanism

The resistance to wiper mechanism vibration is a specific functional requirement for this component. The factory cover is damped against the wiper motor's operating frequency by its higher-mass painted composite construction — the Mansory carbon cover, being lighter, has a higher natural frequency but lower damping ratio. The 2K plain biaxial inner construction is selected specifically to shift the panel's first bending frequency above the wiper motor's operating range (1–2 Hz in standard wiper mode, up to 4 Hz in fast mode), preventing resonant amplification of wiper vibration into the windscreen frame at any operating speed.

Design & Visual Function

In a build where Mansory's front bonnet is fitted, the wiper cover occupies the transitional zone between the bonnet's carbon trailing edge and the windscreen's lower rubber seal — the narrow band that determines whether the material transition from bonnet to glass reads as designed and deliberate or as an awkward mismatch. With the factory painted cover, this zone presents a body-colour or matte-black surface whose painted finish is visually inconsistent with the carbon bonnet above it. With Mansory's carbon replacement, the carbon surface continues from the bonnet's trailing edge across the wiper cover, up to the windscreen's lower seal — an unbroken carbon plane at the windscreen base that resolves the transition completely.

At the three-quarter front viewing angle — the angle that shows both the bonnet's trailing edge and the windscreen base simultaneously — the Mansory carbon wiper cover reads as the logical extension of the bonnet's weave direction into the windscreen zone. The two panels' weave diamonds align at the same 45 ° angle, creating the impression of a single continuous carbon surface that the wiper mechanism's mounting gap simply interrupts rather than terminates. This continuity is the detail that most clearly identifies a comprehensively specified Mansory Aventador versus a build that has added individual components without attention to the transitions between them.

Compatibility & Fitment

Designed for the Lamborghini Aventador LP 700-4 (2011–2016) and LP 720-4 50° Anniversario. The windshield wiper cover geometry is consistent between coupé and Roadster. Aventador S (MY2017+) uses a slightly different wiper cover profile at the windscreen base — the Mansory S programme covers that model. Both LHD and RHD cars use the same wiper mechanism cover geometry.

Installation & Reversibility

The wiper cover clips off and on at the wiper mechanism's standard service access points — a routine maintenance access used by Lamborghini dealer technicians for wiper blade replacement. Installation time: approximately 20–30 minutes including removal of the factory cover and clean-up of the retaining clip edges. No tools beyond a plastic trim tool. Full reversibility — factory cover reinstalls on the same clips. This is the programme's quickest single-component installation and is often completed as a final detail during a broader session covering the bonnet or windshield panel.

Pairing within the Mansory Aventador programme

The windshield wipers cover pairs directly with the carbon windshield panel — which addresses the windscreen's lower forward framing area — and the front bonnet immediately above. Together these three components create a complete carbon zone spanning from the front bonnet's leading edge, across the bonnet surface, through the wiper cover channel, and down the windscreen's lower framing — the full upper front surface of the car in a single material. The A-pillar cover continues the carbon surface from the windscreen's lower zone up the A-pillar to the roof.

Maintenance & Durability

The wiper cover's recessed position at the windscreen base means it accumulates leaf litter, insect debris, and road grime that washes off the bonnet during rain. Clear the recessed channel at every wash with a soft brush and rinse from a low-angle hose rather than a direct pressure wash — sustained pressure into the wiper mechanism gap can displace the wiper motor's water seals. The cover's lacquer is sheltered from direct UV by the windscreen's upper overhang in normal parking orientation, which reduces UV degradation compared to fully exposed panels; a biannual wax application is sufficient UV protection for this position.

Lead Time & Warranty

The windshield wiper cover is a small-format single-piece panel. Lead time is 1–3 weeks from order — the shortest in the programme. Mansory covers the component with a 12-month warranty against delamination, lacquer voids on the visible face, and wiper-arm clearance non-conformance attributable to manufacturing dimensional error.

FAQ

Q: Will the carbon cover affect the wiper's washing fluid delivery nozzles?
A: The washing fluid nozzles on the LP 700-4 are typically integrated into the wiper arm rather than the cover panel. The Mansory cover does not modify the nozzle position. Confirm the nozzle configuration on your specific car — some LP 700-4 builds have optional bonnet-integrated washers that are unaffected by the wiper cover regardless.

Q: Can the wiper cover be fitted without removing the front bonnet?
A: Yes — the wiper cover clips are accessible without bonnet removal on the standard LP 700-4. The bonnet may need to be raised fully (beyond the normal service position) on some builds if the trailing edge geometry restricts access to the forward clips. A second pair of hands holds the bonnet steady while the clips are released.

Q: Is the cover compatible with aftermarket rain-sensor films applied to the windscreen base?
A: Yes. The cover's upper edge aligns with the windscreen's rubber seal — any rain-sensor film applied to the inner windscreen surface is not affected by the outer cover replacement.

Q: Does the weight reduction affect wiper performance at high speed?
A: The wiper mechanism's spring loading and motor torque are designed around the factory cover mass. The Mansory cover is 0.30 kg lighter — an amount too small to affect the wiper mechanism's operating parameters. Wiper performance at speed is unaffected.
